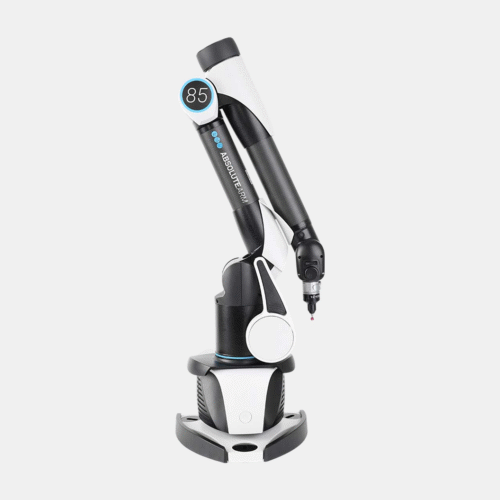

Absolute Arm Compact

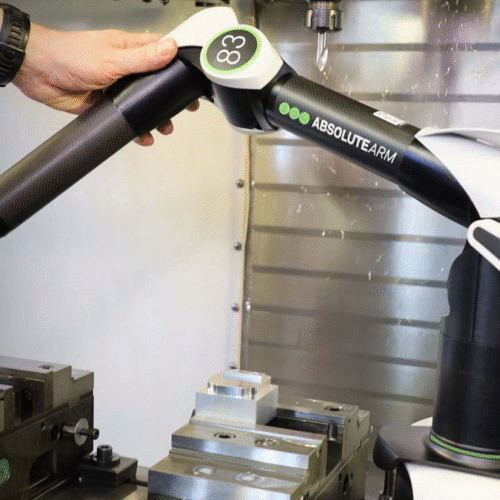

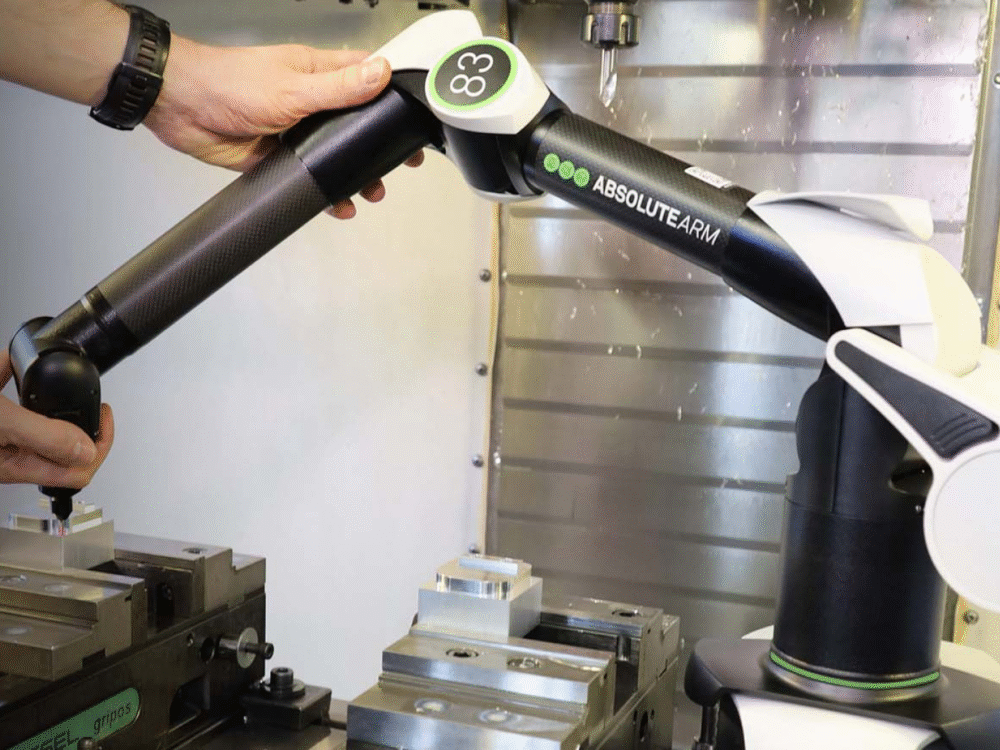

Ultra portable freestanding solution for very high accuracy measurement in tight spaces. Thanks to its integrated base, the Compact does not need any mounting — it can simply be placed on any surface. Ideal for measuring in tight spaces, such as inside CNC machines.

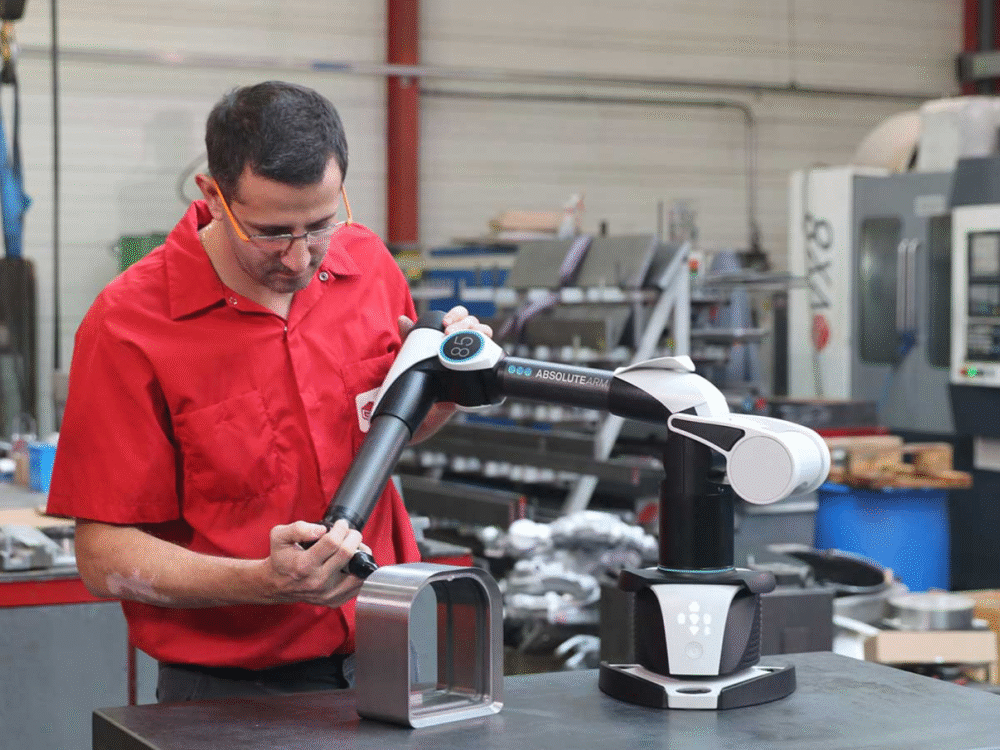

The Absolute Arm Compact is the most accurate and portable mesasuring arm in the world, delivering on average 8% higher accuracy over earlier models. For measuring small parts to ultra high accuracy – for example in machining centres with oil and metal shavings, CMM applications requiring occasional measurements in hard-to-reach areas, or under the CNC machine for part alignment.

Engineered to operate flawlessly in even the most demanding industrial environments, withstanding vibrations from heavy machinery, water and dust particle ingress, temperature and humidity extremes.

Incorporating interactive features that simplify set up and use, even for less experienced operators. Its ergonomic design and smart interfaces minimise set up times, optimise workflows, ensure reliability and increase productivity.

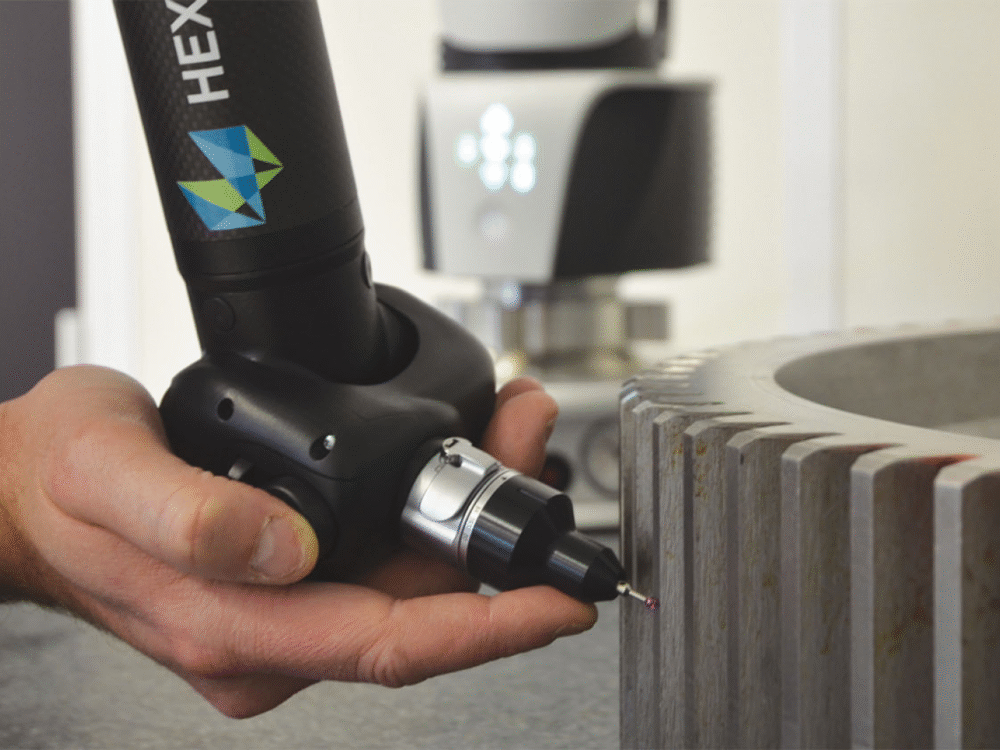

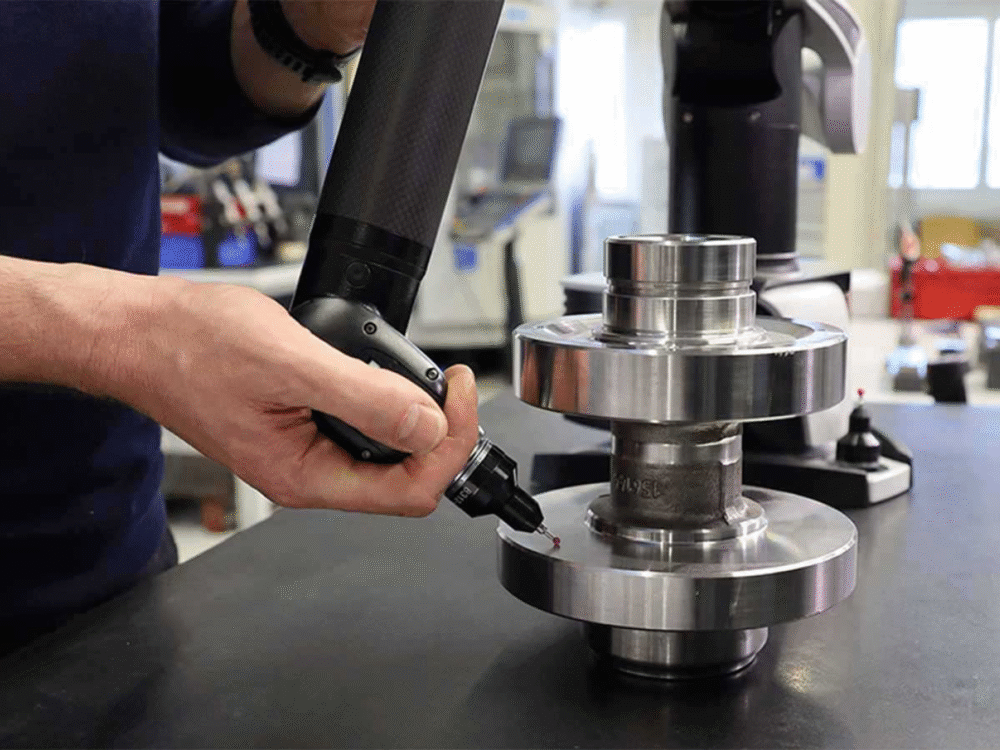

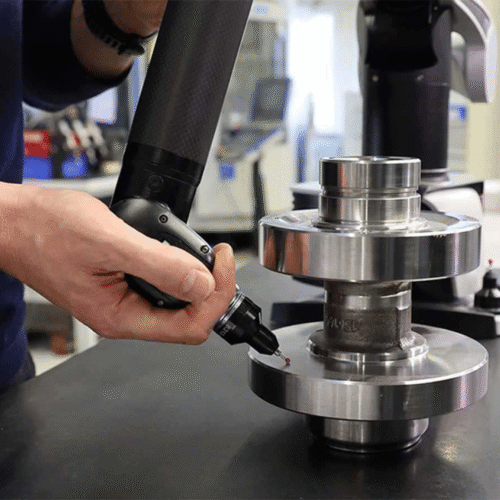

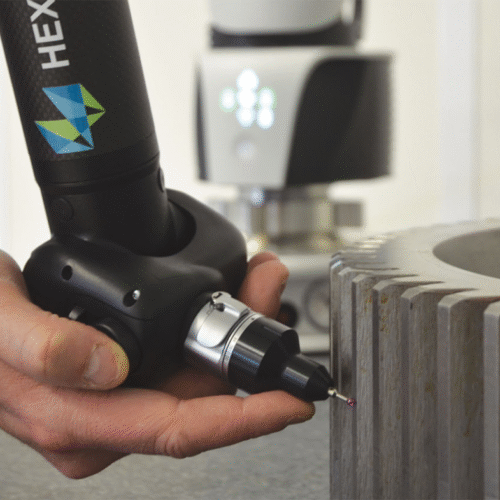

Probing: Market-leading accuracy touch probing with some 100 easily interchangeable compatible probes available for every application.

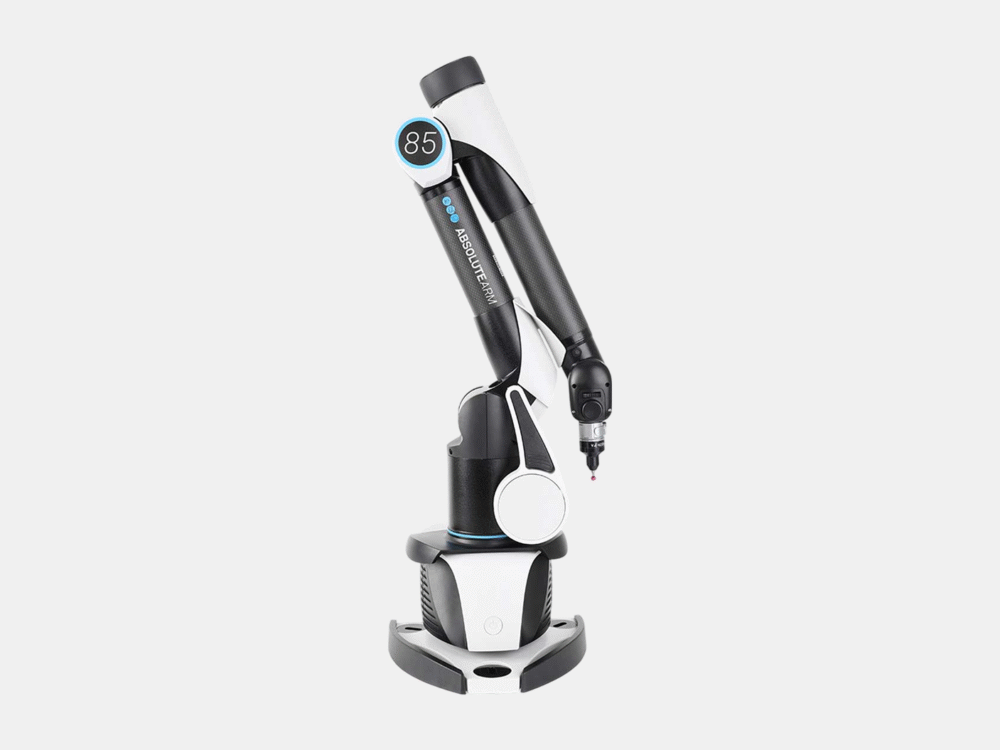

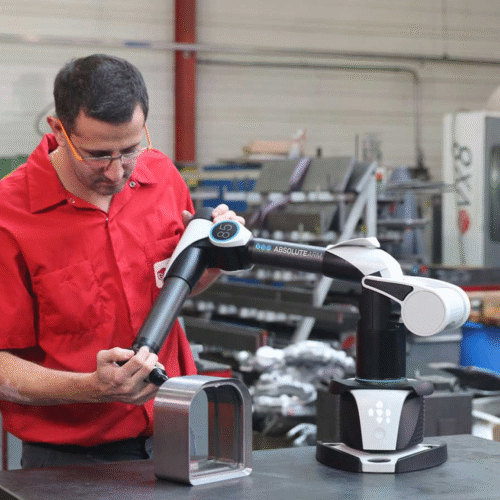

Integral Base and Counterweight: The Compact does not need to be fixed to measure – it can just be placed on a solid surface and it’s ready to go.
Real-Time User Feedback: With haptic feedback functions, the user is alerted to any problems, without having to see the computer screen, in even the harshest industrial environments.
Precise, Effortless Movement: Counterbalanced “Zero G” arms help ensure accuracy and minimise user fatigue in operation.
Absolute Encoders: Placed in every articulated joint of the Absolute Arm, making it the only portable measuring arm on the market to eliminate encoder referencing and frustrating system warm-up times, boosting productivity while delivering high-end accuracy, even in confined spaces.
Advanced Frame Structure: Built on a foundation of high-tech carbon-fibre tube construction, the Absolute Arm maintains strength and thermal stability under any environmental conditions, offering reliable accuracy whatever the environment.
Complete Protection: The world’s first portable measuring arm with an IP54 rating, and guaranteed functionality in temperatures of up to 45 degrees Celsius, the Absolute Arm is the perfect partner for measurement in even the most challenging environmental conditions.
Portability: Even the largest Absolute Arm 6-Axis systems weigh only 10.5 kilograms, making setup and repositioning a quick and easy process, while the functionally designed and shock-resistant carry case keeps everything secure during transport.
Connected: Every Absolute Arm is compatible with major metrology data and asset management solutions.  Arms are wifi enabled and have battery hot swap capability so users can deliver results and monitor arm health and performance in real time, with confidence, from anywhere in the world.
Technical Foundation and Support: The Absolute Arm Compact 6-Axis is part of the 8th generation of Portable Measuring Arms, whose legacy dates back to the mid 1970’s. Today, all Absolute Arms benefit from a 2 year warranty as standard and the largest global service network of any metrology provider.
